The WireTerminals of the C1000 series produce assembled wires for control panel wiring fully automatically. Up to 12 different wires can be processed one after the other without retooling. The wire cross-section ranges from 0.5 mm² to 6 mm².
The wires are cut to length, labelled and different end processing can be carried out on both ends. With ferrules crimped onto both ends, a cycle time from 11 seconds can be achieved. Depending on the version, the wires are dispensed into the patented WireRails or into wire chains.
Models

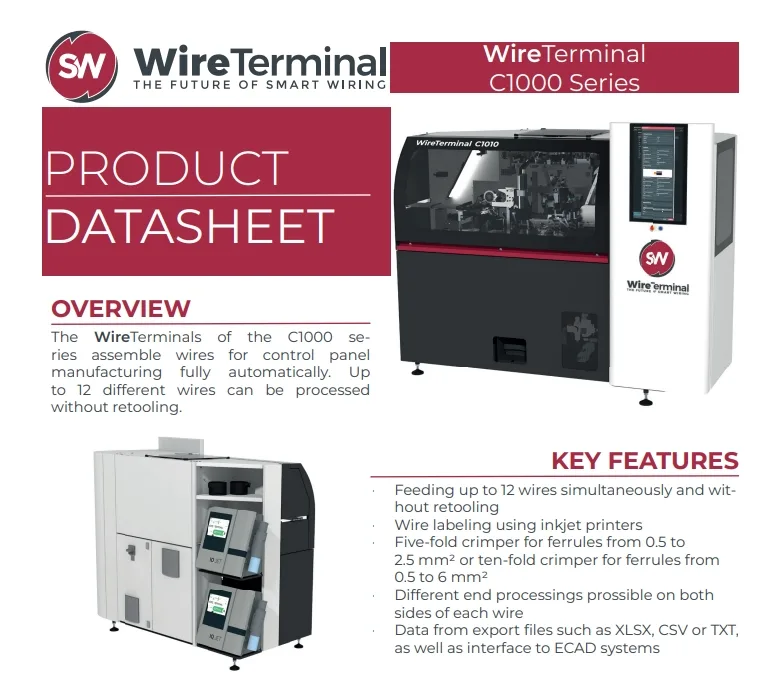

Product data sheet
Here you can download the product data sheet of the WireC1000 series with all data and information.
Download product data sheet (.pdf)
Technical data
| WireTerminal C1005 | WireTerminal C1010 | |
|---|---|---|
| Wire length range | 150 mm to 7,000 mm | 150 mm to 7,000 mm |
| Stripping length | up to 22 mm | up to 22 mm |
| Wire cross-sections | 0.5 mm² to 2.5 mm² | 0.5 mm² to 6 mm² |
| Wire diameter | min. 1.6 mm, max. 4.0 mm | min. 1.6 mm, max. 5.5 mm |
| Ferrule length | 8 mm to 18 mm | 8 mm to 18 mm |
| Stepless partial extraction | 6 mm to 20 mm | 6 mm to 20 mm |
| Stepless full trigger | 2 mm to 22 mm | 2 mm to 22 mm |
| Number of ferrules | 5 | 10 |
| Number of wires equipped simultaneously | 12 | 12 |
| Cycle time for wires with ferrules crimped on both sides | from 11 seconds | from 11 seconds |
| Dimensions | Length = 2,170 mm Width = 1,080 mm Height = 1,870 mm | Length = 2,170 mm Width = 1,080 mm Height = 1,870 mm |
| Weight | 800 kg | 800 kg |
| Compressed air connection | min. 6 bar, max. 10 bar | min. 6 bar, max. 10 bar |
| Operating voltage | 230 V, 1~, 50 Hz/ 60 Hz | 230 V, 1~, 50 Hz/ 60 Hz |
| Control voltage | 24V | 24V |
| Power consumption (approx.) | 1 kW | 1 kW |
Installation plan
