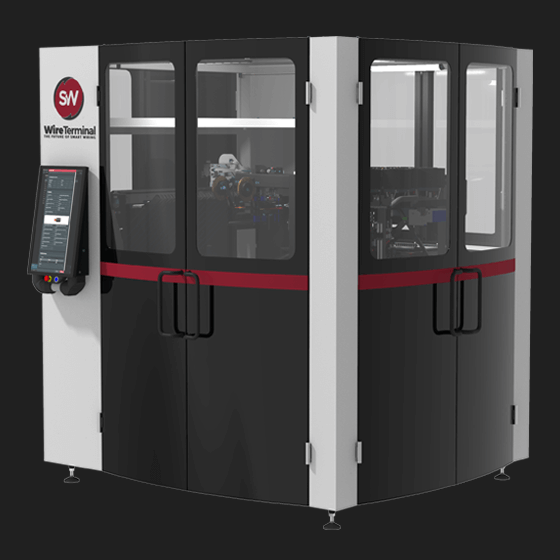

The WireTerminal C3000 produces prefabricated wires for control cabinet wiring fully automatically. Up to 36 different wires can be processed without retooling. Depending on the model, the wire cross-section ranges from 0.5 mm² to 6 mm².
The wires are cut to length, labelled and different end processing can be carried out on both ends. With ferrules crimped onto both ends, a cycle time from 8 seconds on can be achieved. The wires can then be deposited in patented WireRails, fixated between adhesive tape one behind the other or simply dropped.
Models

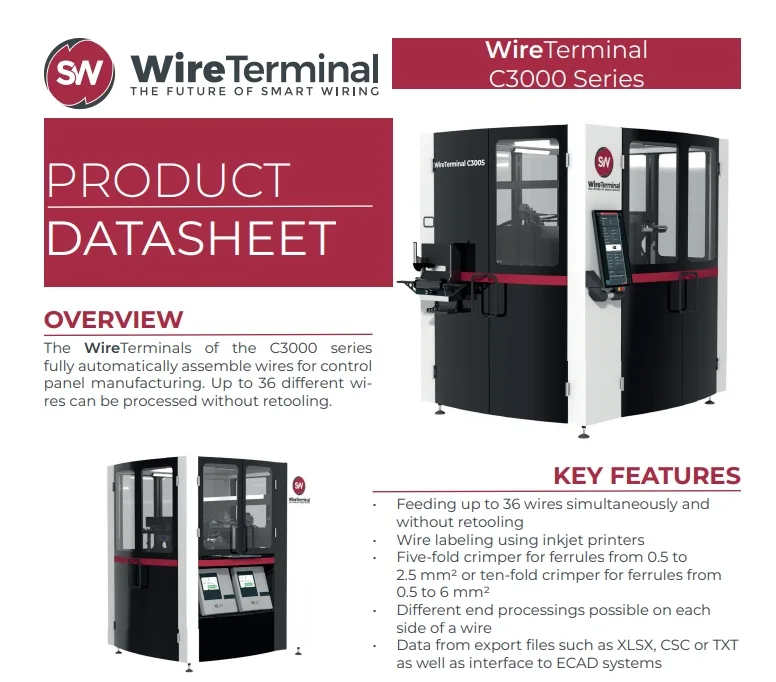

Product data sheet
Here you can download the product data sheet of the WireTerminal C3000 series with all data and information.
Download product data sheet (.pdf)
Which technical specifications
does the WireTerminal C3000 series offer?
| WireTerminal C3005 | WireTerminal C3010 | |
|---|---|---|
| Wire length range | 150 mm to 7,000 mm | 150 mm to 7,000 mm |
| Stripping length | up to 22 mm | up to 22 mm |
| Wire cross-sections | 0.5 mm² to 2.5 mm² | 0.5 mm² to 6 mm² |
| Wire diameter | min. 1.6 mm, max. 4.0 mm | min. 1.6 mm, max. 5.5 mm |
| Ferrule length | 8 mm to 18 mm | 8 mm to 18 mm |
| Stepless partial extraction | 6 mm to 20 mm | 6 mm to 20 mm |
| Stepless full trigger | 2 mm to 22 mm | 2 mm to 22 mm |
| Number of ferrules | 5 | 10 |
| Number of wires equipped simultaneously | 36 | 36 |
| Cycle time for wires with ferrules crimped on both sides | from 8 seconds | from 8 seconds |
| Dimensions | Width = 1,960 mm Height = 2,255 mm Length = 2,255 mm | Width = 1,960 mm Height = 2,255 mm Length = 2,255 mm |
| Weight | 1,390 kg | 1,390 kg |
| Compressed air connection | min. 6 bar, max. 10 bar | min. 6 bar, max. 10 bar |
| Compressed air consumption | up to 60 Nl/min | up to 60 Nl/min |
| Operating voltage | 230 V, 1~, 50 Hz/ 60 Hz | 230 V, 1~, 50 Hz/ 60 Hz |
| Control voltage | 24V | 24V |
| Power consumption (approx.) | 1 kW | 1 kW |
Installation plan
Which extensions are available for
the WireTerminal C3000 available?
Frequently asked questions about the C3000 series
The WireTerminal C3005 processes up to 2.5 mm², the WireTerminal C3010 up to 6 mm² with the same footprint and output options.
Thanks to error minimisation and time savings, the system often pays for itself from just 150 control cabinets per year.
